Fabric conveyor belt

EP / NN belts

Suitable for medium and long distance, heavy load and high speed transportation of materials. Widely used in mining, quarries, cement, iron and steel industry.

  • General purpose
  • Mining and quarries
  • Steel and foundry
  • Cement
Request a quote Get advice

Technical characteristics

Carcass2 to 6 rot-resistant plies made of synthetic EP or NN fabric
Carcass functionProviding the longitudinal strength and the shape of the belt
CoversTop cover and bottom rubber protecting the carcass
ProtectionFrom abrasion, impact, deterioration, water and other injurious influences
Available widthsCustom —

Key benefits

High tensile strength, low elongation

Excellent troughability, long service life

Carcass: 2-6 rot-resistant plies of EP or NN fabric

Diagrams and details

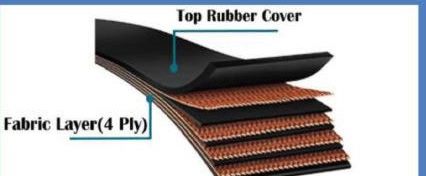

Cross-section diagram: a top rubber cover (labelled “Top Rubber Cover”) over four fabric plies (labelled “Fabric Layer (4 Ply)”)

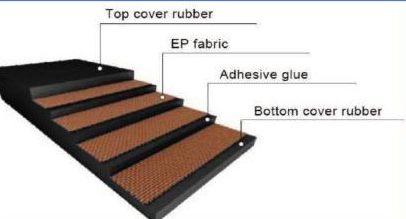

Exploded diagram of the belt layers, top to bottom: top cover rubber, EP fabric, adhesive glue, bottom cover rubber

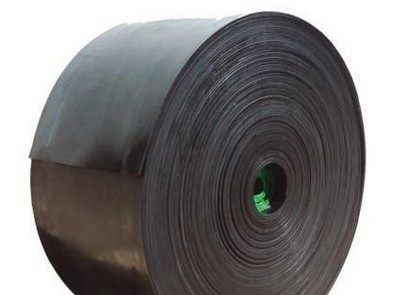

Roll of black conveyor belt
